Diesel Tuning – Landcruiser 200 Series (1VD V8)
The Landcruiser 200 Series with the 1VD 4.5‑litre V8 turbo‑diesel is a legend of reliability and towing ability. But factory tuning leaves significant power on the table – safely.
This particular 200 Series came from South Africa, so it did not come with a DPF system from the factory. That simplifies things, but emissions systems (like EGR) still need attention for long‑term reliability.
We’ll show you what we achieved with software alone, and what it takes to go further.
✅ SA models have no DPF – but we still recommend addressing other emissions systems
✅ Proper diesel tuning does not create smoke – we calibrate cleanly
✅ Stock turbo, injectors, and exhaust are fine for the first 30% power gain
✅ Beyond that, hardware upgrades become mandatory
The Stock Baseline (South African Model – No DPF)
Our test vehicle arrived in healthy, unmodified condition. No DPF fitted from factory.
Stock (no DPF, factory calibration):
226 horsepower and 504 Newton‑metres of torque.
A solid baseline, but the 1VD is capable of much more.
Our Calibration – Stock Hardware, Unlocked Potential
We loaded our custom calibration, keeping the factory turbo, factory injectors, and factory exhaust – no hardware changes.
After our tune:
278 horsepower and 704 Newton‑metres of torque.
That’s a gain of 52 horsepower and 200 Nm – roughly a 23% increase in power.
✅ No smoke – clean, efficient combustion
✅ Factory reliability preserved
✅ Transformed towing and overtaking ability

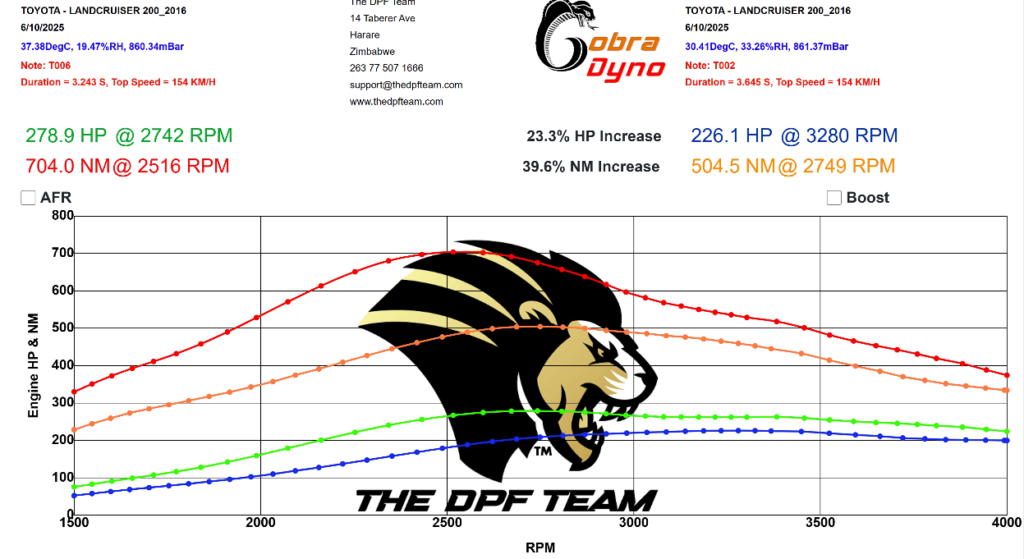

Blue line: Stock (SA model, no DPF) – 226hp / 504Nm
Red line: Our tune – 278hp / 704Nm
Dealing with Emissions Systems for Reliability
Even though this South African model had no DPF, diesel engines still have other emissions systems – most notably EGR (exhaust gas recirculation). These systems introduce soot and carbon buildup into the intake manifold, which over time robs power and reliability.
✅ We recommend addressing EGR and any other emissions restrictions as part of a reliability package
✅ This can include physical blanking (where legal) and ECU recalibration
✅ Cleaner intake air means longer engine life, especially on a vehicle used for towing
Here in Zimbabwe, these modifications are legal. We’ll advise you based on your specific vehicle.
Going Beyond 30% Power – Hardware Becomes Mandatory
For most owners, 278hp / 704Nm is a massive improvement – and it’s the safe limit on stock hardware (turbo, injectors, exhaust, intercooler).
If you want to go beyond a 30% power gain (roughly 294hp+), the next bottlenecks become critical:
✅ Turbocharger upgrade – the factory VNT turbo runs out of flow
✅ Larger exhaust – to lower EGTs and reduce backpressure
✅ Upgraded intercooler – to manage intake air temperatures
With these three upgrades, the 1VD is capable of reaching 330 horsepower – but the biggest bottlenecks remain the turbocharger and intercooler.
We have not yet pushed this specific 200 Series beyond 300hp, however we have pushed a single turbo 1VD to 327hp which had the above mentioned upgrades. We are happy to develop a hardware + tune package for customers who want more. See video below:
What About an Exhaust Upgrade on Its Own?
✅ A larger exhaust (e.g., 3″ or 3.5″) without a turbo upgrade will not significantly increase peak power.
✅ It does lower EGTs and can add 3–5% mid‑range torque – helpful for towing.
✅ For those chasing 330hp, a proper exhaust is mandatory, not optional.
If you tow heavy loads regularly, an exhaust upgrade is a smart reliability mod even at 278hp.
The Bottom Line (For Landcruiser 200 Series 1VD Owners)
| Setup | Power / Torque | Notes |
|---|---|---|
| Stock (SA model, no DPF) | 226hp / 504Nm | Factory baseline |
| Our tune – stock hardware | 278hp / 704Nm | +23% gain, no smoke, reliable |
| Add exhaust + intercooler (no turbo upgrade) | Same peak power, lower EGTs | Good for towing reliability |
| Turbo upgrade + exhaust + intercooler | ~330hp | Biggest bottlenecks: turbo & intercooler |
| contact us to develop |
No stages. Just honest diesel tuning for the legendary 1VD.
[OUTRO IMAGE SUGGESTION: Dyno graph of the 278hp tune, or a shot of the 200 Series towing]
Ready for Your Landcruiser 200 Series?
If you own a 200 Series with the 1VD V8 diesel (South African or import) and you want:
✅ A safe, no‑smoke tune delivering 278hp / 704Nm on stock hardware
✅ Advice on emissions system deletes (EGR, etc.) for reliability
✅ A pathway to 330hp with turbo, exhaust, and intercooler upgrades
…reach out. We’ll give you a clear, no‑BS recommendation based on your vehicle and how you use it.
And if you want to be the first to push past 330hp? Let’s talk. We’re happy to develop that with you.
