The first‑generation Toyota Hilux with the 1KD 3.0‑litre turbo‑diesel is a true workhorse. These engines never came with modern emission systems (DPF, AdBlue) – so no removal work is needed. They are simple, robust, and respond beautifully to tuning.
We’ll show you what a healthy example makes stock, what our tune delivers, and why going beyond this level is a question of mechanical sympathy.
✅ No DPF, no AdBlue – no emission work required
✅ Proper diesel tuning does not create smoke
✅ Stock turbo, injectors, and exhaust remain
✅ Age matters – we tune with respect for the engine’s years
The Stock Baseline (No Emission Systems)
Our test vehicle arrived in good, unmodified condition. First‑gen 1KD – no DPF, no AdBlue from factory.
Stock (factory calibration):
162 horsepower and 385 Newton‑metres of torque.
That’s a healthy baseline for a 3.0 diesel of this era.
Our Calibration – Safe, Reliable Gain
We loaded our custom calibration, keeping the factory turbo, factory injectors, and factory exhaust – no hardware changes.
After our tune:
213 horsepower and 480 Newton‑metres of torque.
That’s a gain of 51 horsepower and 95 Nm – roughly a 31% increase in power.
✅ No smoke – clean, efficient combustion
✅ Factory reliability preserved
✅ Transformed drivability – similar power to a 2024 Hilux GR Sport (which makes around 204–224hp depending on market)
In fact, your first‑gen Hilux with our tune will match or exceed a brand‑new top‑spec GR Sport – without the huge purchase payment.

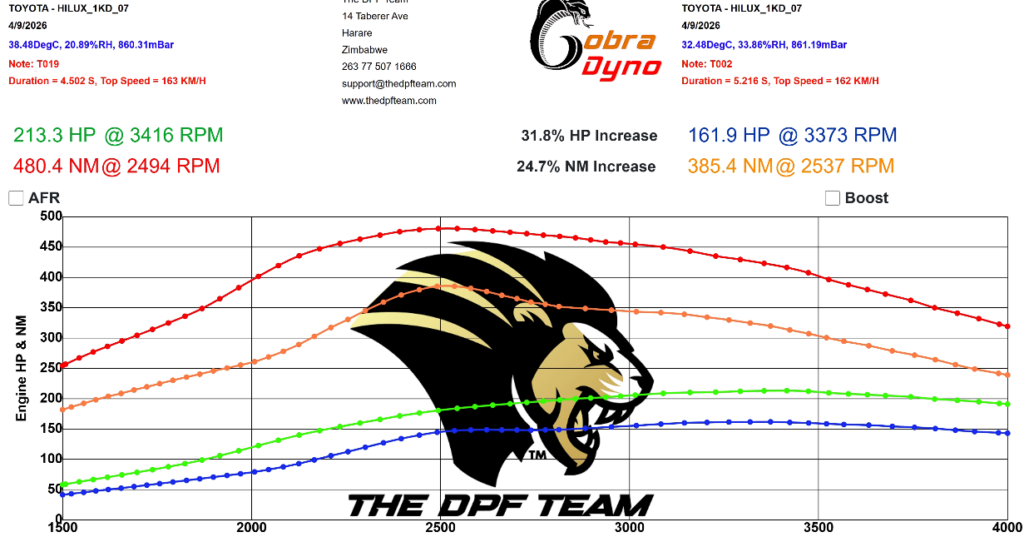

Blue line: Stock – 162hp / 385Nm
Red line: Our tune – 213hp / 480Nm
Going Beyond 213hp – The Age Question
Technically, it is possible to push the 1KD further – maybe 230–240hp with an exhaust, turbo, intercooler, and more aggressive calibration. But the real question is:
Should you?
These first‑gen 1KD engines are no longer young. They have years of wear, heat cycles, and potential fatigue. Pushing significantly beyond 213hp risks:
✅ Higher exhaust gas temperatures (EGTs)
✅ Added stress on pistons and rings
✅ Potential head gasket issues
✅ Shortened turbo life
Our philosophy: Give you a very healthy, satisfying gain that the engine can handle for years to come. If you want more power, we’d need to inspect the engine’s condition thoroughly – and even then, we would advise caution.
For 99% of owners, 213hp / 480Nm is the sweet spot – reliable, noticeable, and respectful of the engine’s age.
What About an Exhaust Upgrade?
✅ A larger exhaust (e.g., 2.75″ or 3″) can lower EGTs and add a small amount of mid‑range torque (3–5%).
✅ It will not significantly increase peak power – the turbo and injectors are still the main bottlenecks.
✅ If your factory exhaust is old or rusty, an upgrade is fine – but don’t expect a power jump.
We recommend an exhaust mainly for EGT management if you tow heavy loads.
The Bottom Line (For First‑Gen Hilux 1KD Owners)
| Setup | Power / Torque | Notes |
|---|---|---|
| Stock | 162hp / 385Nm | Factory baseline – no emission systems |
| Our tune – stock hardware | 213hp / 480Nm | +31% gain, no smoke, reliable – matches new GR Sport |
| Beyond 213hp | Possible but not recommended due to engine age | Contact us for an inspection first |
No stages. Just honest tuning that respects the age of your vehicle.
Ready for Your First‑Gen Hilux 1KD?
If you own a first‑generation Toyota Hilux with the 1KD 3.0 diesel and you want:
✅ A safe, no‑smoke tune delivering 213hp / 480Nm – similar power to a brand‑new GR Sport
✅ No emission system removal needed (these engines never had them)
✅ Honest advice about whether to push further (we don’t recommend it)
…reach out. We’ll give you a clear, no‑BS recommendation based on your vehicle’s condition.
And if you really want to explore going beyond 213hp? We’ll inspect your engine first – but we’ll be honest about the risks.
